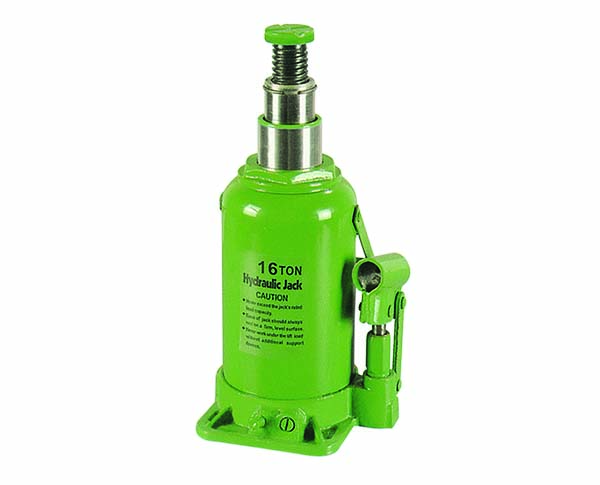

液压千斤顶(双节型)

·Adjustable screw saddle provides additional lifting ranges with support and stability.
·Wide,rugged base provide stability and strength.
·All critical stress points are reinforced for added durability and dependablity.
·Dual stage rams provides higher lifting range.
·Ideal for auto, truck service,farm,and shop use
Model Model Lifting Wt Min.H Lifting H Adjust H Max H Net Wt GR.WT. Measurement Quantity 20´Container
(ton) (mm) (mm) (mm) (mm) (kg) (kg) (cm) (pcs) (pcs)
T010402 / 2 165 190 55 410 2.9 16 60×14.5×20 5 5400
T010404 JT0404 4 150 160 35 345 4.5 18 65.5×14×22 5 4800
T010406 JT0604 6 154 160 40 354 5.5 23 60×16×20 4 3000
T010408 / 8 156 160 40 356 6 25 60×16×20 4 2800
T010412 JT1204 12 230 285 50 565 10.5 22 34×19.5×27 2 1600
T010416 / 16 232 285 50 567 12 25 35.5×19.5×27 2 1400
T010420 JT2004 20 235 285 50 570 15.5 16.5 20×19×25 1 1000
T010432 JT3204 32 250 280 / 530 22 22.5 23×21×26 1 800
T010450 / 50 320 380 / 700 40 41 31×24×36 1 400
