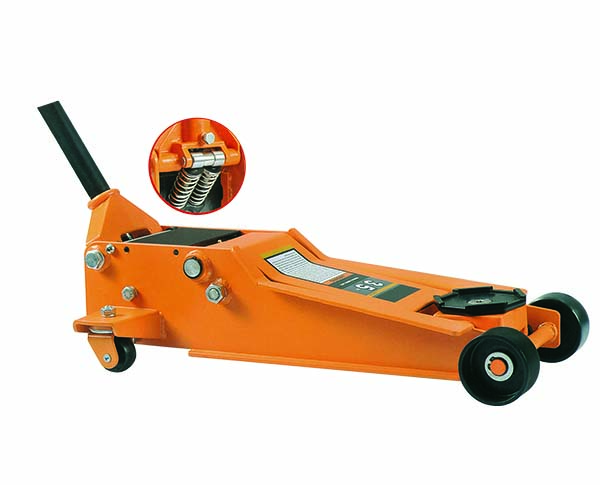

超低型卧式千斤顶
FEATURES·Large Steel Casters and swivel casters for easy maneuverability.
·Lightweight for easy mobility and transport.
·All welded steel frame construction with rust resistant finish for longer tool life.
·Meet ANSI/ASME&CE/GS standards.
| 85mm LOWER PROFILE Min.Height | ||
| Model | T050116 | T070206 |
| Lifting Wt | 2ton | 3ton |
| Min.H | 85mm | 85mm |
| Lifting H | 400mm | 400mm |
| Max H | 485mm | 485mm |
| Net Wt | 32kg | 34kg |
| GR.WT. | 34kg | 36kg |
| Quantity | 1 | 1 |
| Measurement | 69×38.5×20cm | 69×38.5×20cm |
| 20´Container | 500Pcs | 500Pcs |
| 100mm LOWER PROFILE Min.Height | ||
| Model | T070205 | T090103 |
| Lifting Wt | 3ton | 3.5ton |
| Min.H | 100mm | 100mm |
| Lifting H | 430mm | 425mm |
| Max H | 530mm | 525mm |
| Net Wt | 45kg | 42kg |
| GR.WT. | 47kg | 44kg |
| Quantity | 1 | 1 |
| Measurement | 80×41×20.5cm | 80×41×20.5cm |
| 20´Container | 400Pcs | 400Pcs |
