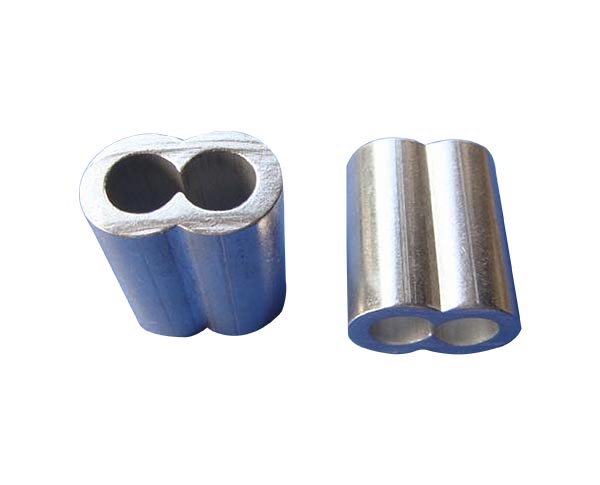

| ALUMINUM SLEEVE HOURGLASS | ||||||||
| ART NO. | PSEC. | ROPE DIA | INS.DIA | OUT.DIA | OUT.WIDTH | INS.WIDTH | LENGTH | WEIGHT |
| SLEEVE CODE | mm | mm | mm | mm | mm | mm | kg | |
| CLE0601 | 1/16" | 1.60 | 1.98 | 4.37 | 4.35 | 4.00 | 9.60 | 0.00400 |
| CLE0602 | 5/64" | 2.00 | 2.39 | 5.56 | 7.95 | 4.80 | 9.60 | 0.00700 |
| CLE0603 | 3/32" | 2.40 | 3.3 | 7.06 | 10.26 | 6.50 | 12.70 | 0.00150 |
| CLE0604 | 1/8" | 3.20 | 3.96 | 8.71 | 12.7 | 7.90 | 15.90 | 0.00290 |
| CLE0605 | 5/32" | 4.00 | 4.75 | 9.53 | 14.28 | 9.50 | 17.50 | 0.00360 |
| CLE0606 | 3/16" | 5.10 | 5.66 | 11.2 | 16.89 | 11.40 | 25.40 | 0.00700 |
| CLE0607 | 7/32" | 5.60 | 6.35 | 17.7 | 19.05 | 12.70 | 27.40 | 0.01000 |
| CLE0608 | 1/4" | 6.40 | 7.37 | 13.61 | 20.78 | 14.60 | 28.60 | 0.01100 |
| CLE0609 | 9/32" | 7.10 | 7.92 | 14.27 | 22.35 | 16.00 | 32.20 | 0.01300 |
| CLE0610 | 5/16" | 8.00 | 9.53 | 17.45 | 26.19 | 18.30 | 31.70 | 0.02100 |
| CLE0611 | 3/8" | 9.50 | 11.13 | 9.05 | 29.35 | 21.40 | 36.50 | 0.02700 |
| CLE0612 | 7/16" | 11.10 | 12.7 | 23.08 | 36.5 | 25.40 | 42.80 | 0.05300 |
| CLE0613 | 1/2" | 12.70 | 14.27 | 27 | 41.28 | 28.50 | 50.80 | 0.08000 |
