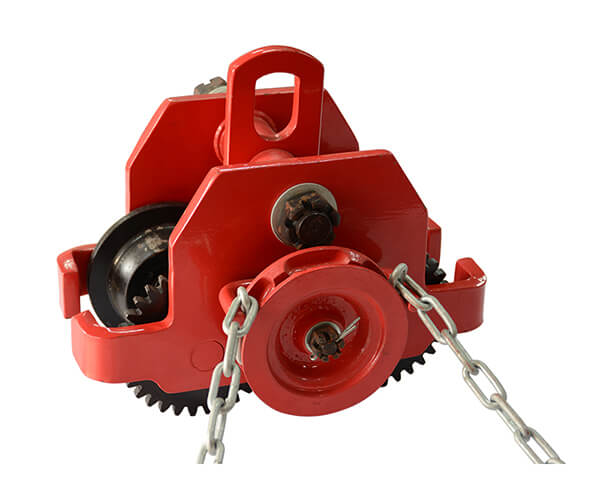

CSL-E2手拉小车

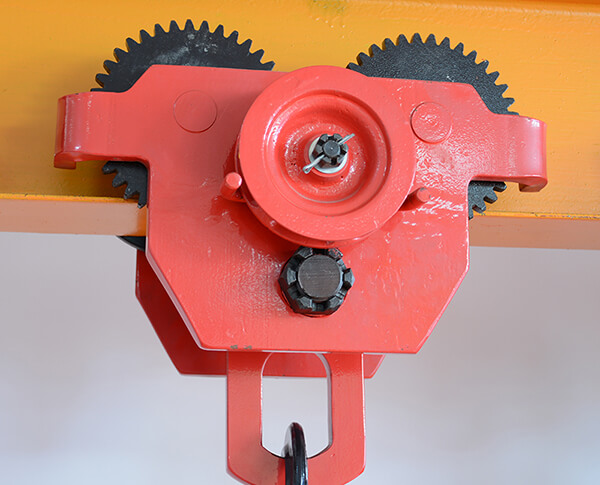

It is driven by pulling the hand chain and travels along the lower edge of I-beam.
It applicables to factories,mine , wharf, dock,warehouse,construction site and machine room,etc.
It is used to install the machine equipment and lift goods.

It is suitable for the work environment without power.

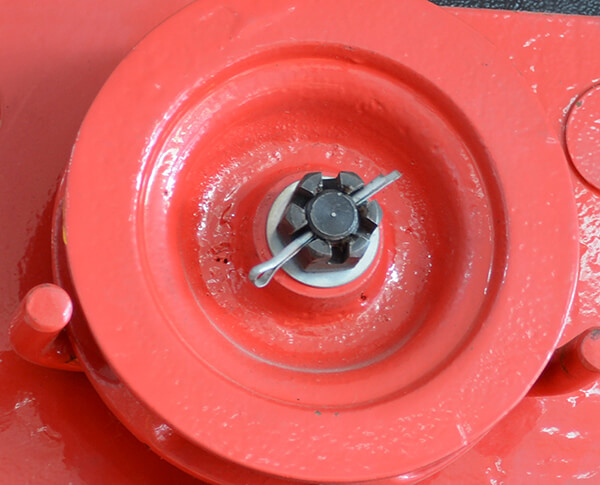

Safety and simply maintenance.
Compact structure and small package size.

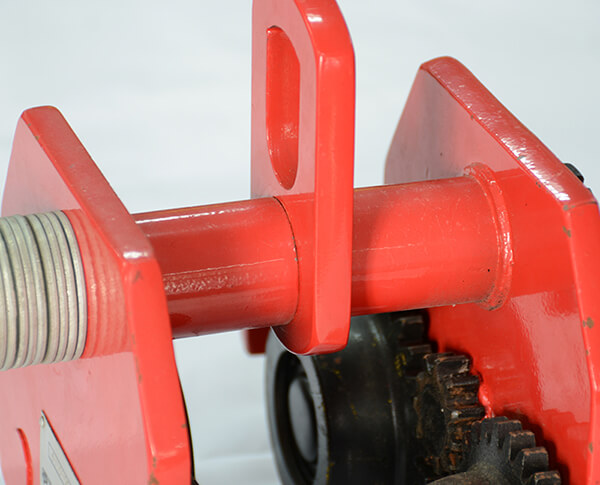

The distance between its wheels is easy to adjust and can be used in many kinds of I-beam.
It's so high transmission efficiency that do need less output.
It can be drived in a small turning diameter.

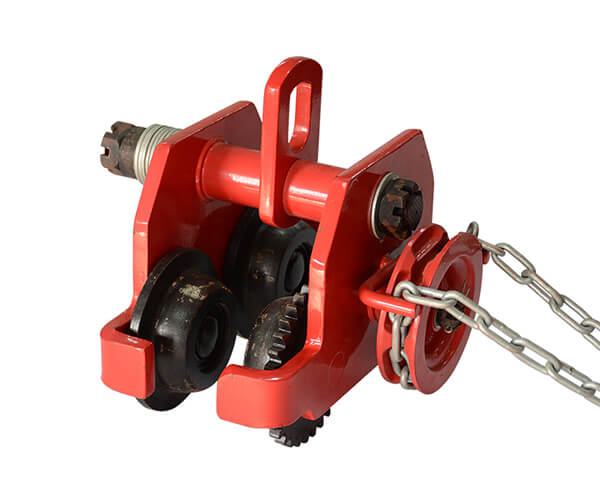

The hinge linkes the left and right side plate to guarantee equal force.

Don't load exceeding the rated capacity of the hand trolley.
To avoid accidents working or passing under a load is strictly forbidden.
Regularly fill the grease on the bearings and rail surfaces. Meantime check whether there is any loose on the firmware.
If there are any anomalous situations, stop using the product immediately and Check the cause to remove it .
Regularly maintenance is needed.

CSL-E2型手拉单轨行车性能参数表

规格 Model 1t 2t 3t 5t 10t
额定载重量Rated capacity t 1 2 3 5 10
试验载荷 Test load KN 12.5 25 36.8 61.3 122.5
标准运行高度 Running height m 3
满载时的手拉力Chain pull to lift full load N 44 80 65 90 195
能通过的最小弯道半径 Min.radus of curve m 1 1.1 1.3 1.4 1.7
主要尺寸
mm
Dimensions

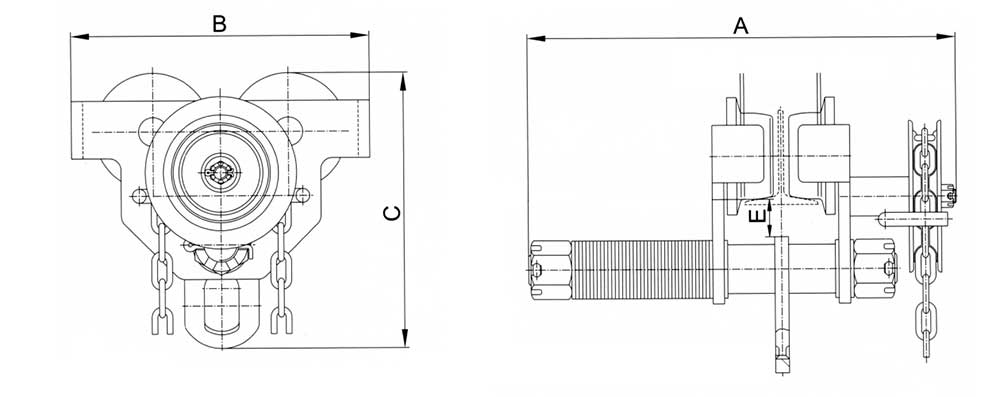

A 挂梁Pyion 390 400 430 444 489
加长挂梁
Lengthen pyion
492 502 532 544 584
B 260 300 345 390 470
C 239 288 336 393 500
E 32.5 31 35 37 45
F ≈3
H 136 161 185 220 280
适用轨宽
mm
Adlustable beam width
M 挂梁Pyion 64-203 88-203 102-203 114-203 125-203
加长挂梁
Lengthen pyion
102-305 102-305 102-305 108-305 117-305
运行高度每增减1米相应增减重量
Extra weight per meter of extra lift
kg ≈1
净重 Net weight kg 挂梁Pyion 19.9 28.5 46 57 103
加长挂梁
Lengthen pyion
21.1 30.6 49.8 60.8 108.5
