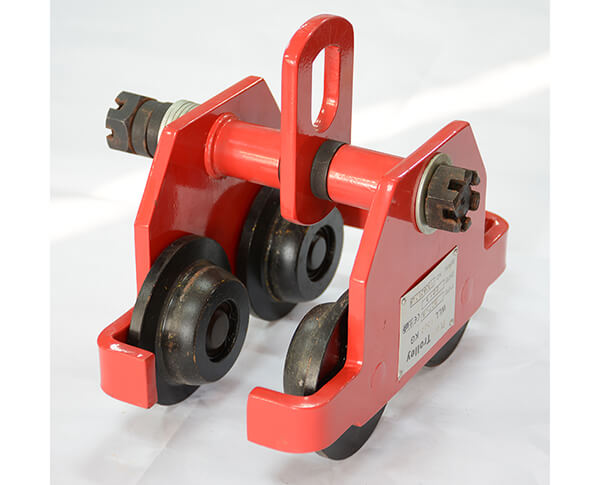

GCT-B手推小车

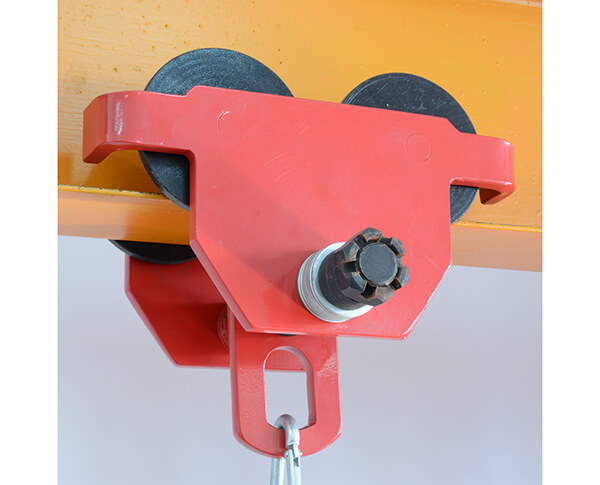

It travels along the lower edge of I-beam.
It applicables to factories,mine , wharf, dock,warehouse,construction site and machine room,etc.
It is used to install the machine equipment and lift goods.

It is suitable for the work environment without power.
Safety and simply maintenance.
Compact structure and small package size.
It's so high transmission efficiency that do need less output.
It can be drived in a small turning diameter.

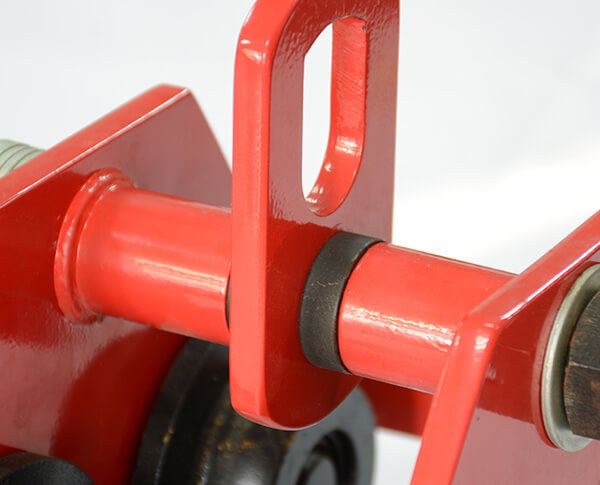

The hinge linkes the left and right side plate to guarantee equal force.
Regularly fill the grease on the bearings and rail surfaces. Meantime check whether there is any loose on the firmware.
If there are any anomalous situations, stop using the product immediately and Check the cause to remove it .
Regularly maintenance is needed.

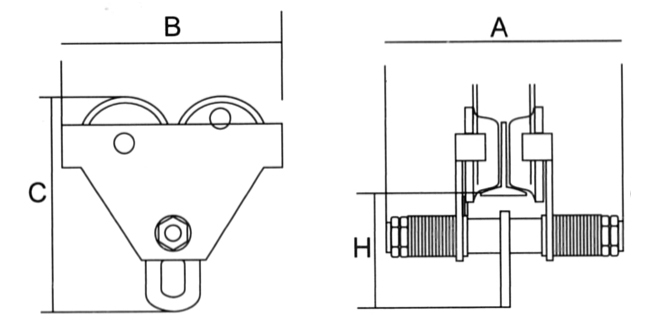

Capacity I-Beam Net weight Rated Dimensions(MM)
(T) width(MM) (KG) load(KN) A B C H
0.5T 68-128 5.3 6.25 208 200 200 150
1T 80-146 9.5 12.5 242 216 253 170
2T 80-168 11.5 25 280 260 310 180
3T 88-168 25.5 37.5 300 300 357 190
5T 100-180 38 62.5 316 345 400 210
10T 122-203 85 125 343 395 520 220
