JTHH-C款电动葫芦

1. New design and light body;

2. The protection grade of the motor rotor is IP55;

3. Brakes: Disc DC electromagnetic brakes, with large braking torque, smooth and rapid braking, and low noise;

4. The contact type upper and lower limit switches are safe and reliable;

5. All electrical components of contactors, transformers and terminals are closed with a block type;

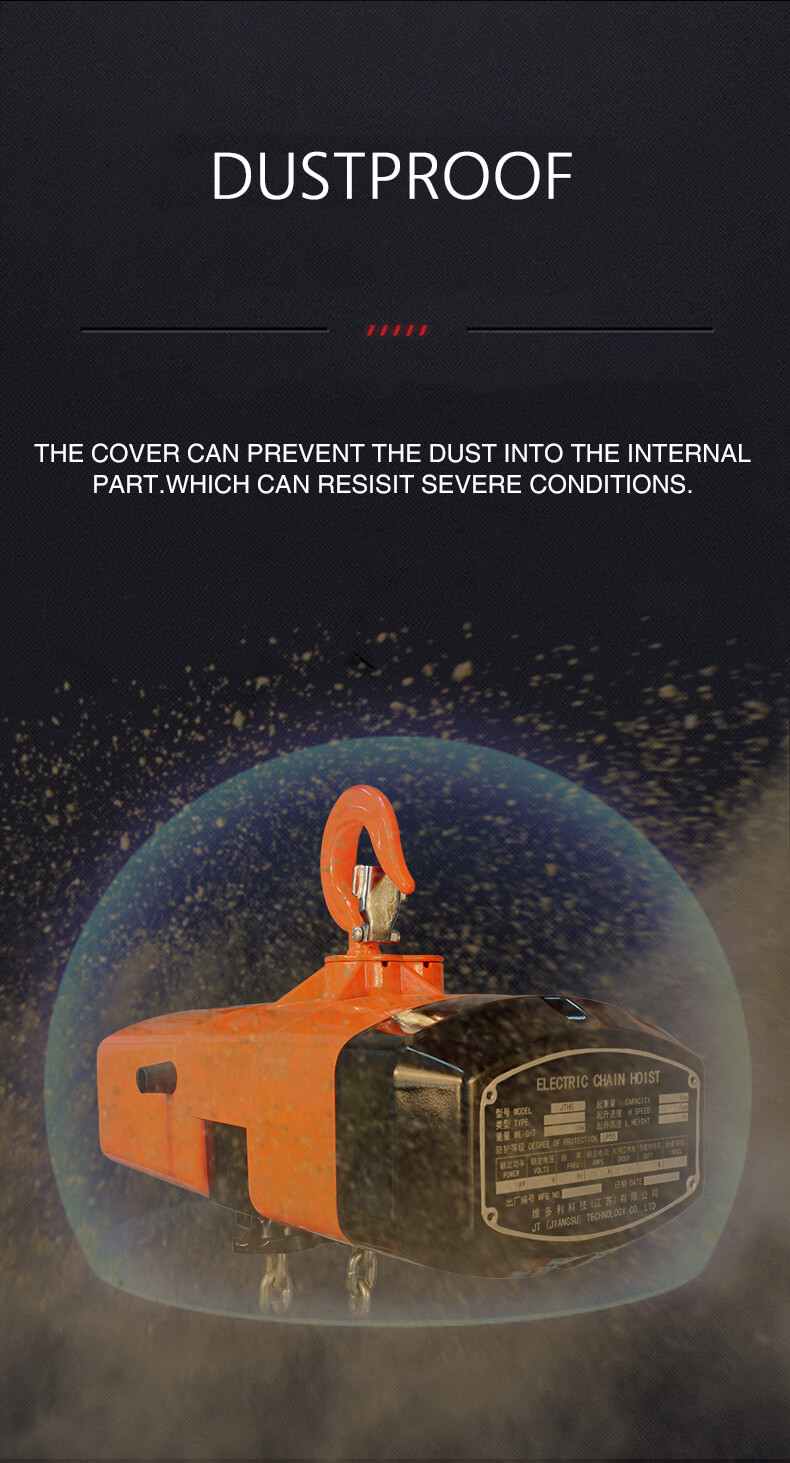

6. Protection class lP55;

7. The clutch bearing adopts powder metallurgy library wiper, which has good heat dissipation and long service life;

8. The castor box is made of PE polyethylene, which is odorless, impactless, and feels like a grandma;

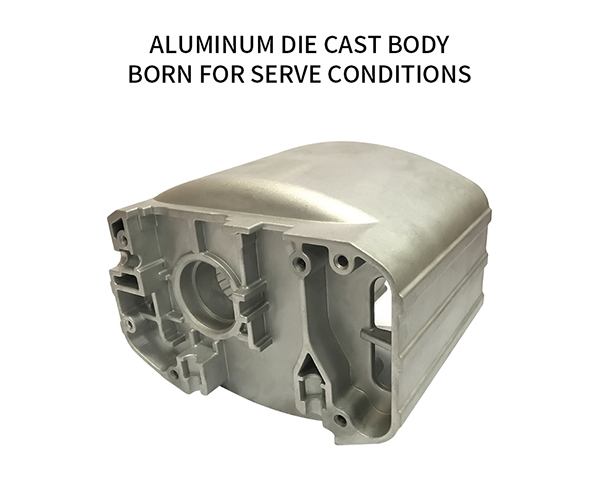

9. The machine body uses commercial strength aluminum alloy. Thin-wall extrusion molding is made in orange dense, commercial pressure die-casting to avoid the formation of pores during the forming process. Raise the strength of the body, reduce the appearance of cocoon;

10. When the motor is running, the noise is low (measured at the rated electric frequency and rated lifting, the noise is ≤82 dB).

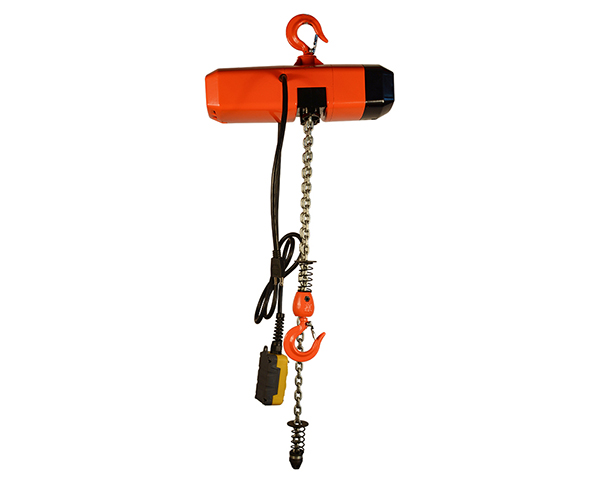

JTHH-C Series Mini Single Chain Electric Chain Hoist
(300lbs~800lbs)
MODEL NO. W.L.L.(lbs) Chain
Falls
Lifting Speed
(m/min)
Motor Power
(HP)
Load Chain
(dxp)
N.W.
(kg)
Extra Weight
Per Lift(kg)
Specifications(mm)
A B C D E F G H L M N
JTHH1D1- 300CX 300 1 4.3(14fpm) 1/6(0.13KW) 5x15 11.5 0.56 368 367 150 108 71 200 75 139 35 23 26
JTHH1A2- 500CX 500 2 2.1(7fpm) 1/6(0.13KW) 5x15 14 1.12 407 367 150 108 71 200 75 139 35 23 26
JTHH1A2- 800CX 800 2 2.1(7fpm) 1/5(0.15KW) 5x15 14.5 1.12 425 367 150 108 71 200 75 145 37 25 28

Standard Power: Single Phase, 115V, 60HZ; other could be customized.
