棘轮式拉紧器

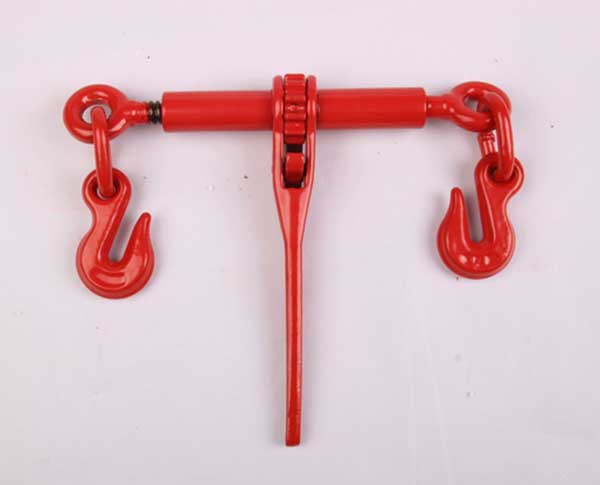

FORGED RATCHET LOAD BINDERTechnical specialities
·Upgraded for use with grade 70,80 and 100 chain
·One piece forged handle
·Continous take-up features provides finite adjustment to tie down load
·Each binder individually proof tested.
·Easy operation positive ratchet
|
Min-Max Chain Size （in.） |
Working Load Limit （lbs） |
Proof Load （lbs） |
Minimum Ultimate Load （lbs） |
Weight （lbs） |
Handle Length （in.） |

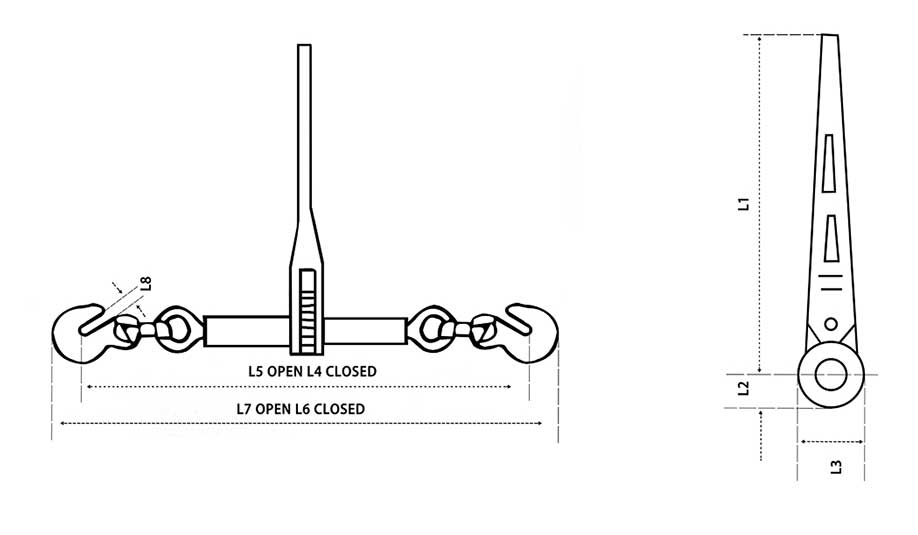

Dimensions （in.） |
|||||||
| L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | ||||||
| 1/4-5/16 | 2600 | 5200 | 7800 | 3.52 | 7.16 | 7.16 | 0.89 | 1.77 | 16.22 | 21.26 | 17.79 | 22.83 | 0.35 |
| 5/16-3/8 | 5400 | 10800 | 19000 | 10.50 | 13.42 | 13.42 | 1.30 | 2.60 | 22.64 | 30.64 | 25.24 | 33.24 | 0.51 |
| 3/8-1/2 | 9200 | 18400 | 33000 | 12.90 | 13.92 | 13.92 | 1.30 | 2.60 | 24.13 | 32.13 | 27.04 | 35.04 | 0.59 |
| 1/2-5/8 | 13000 | 26000 | 46000 | 14.38 | 13.92 | 13.92 | 1.30 | 2.60 | 26.45 | 34.45 | 30.07 | 38.07 | 0.74 |
