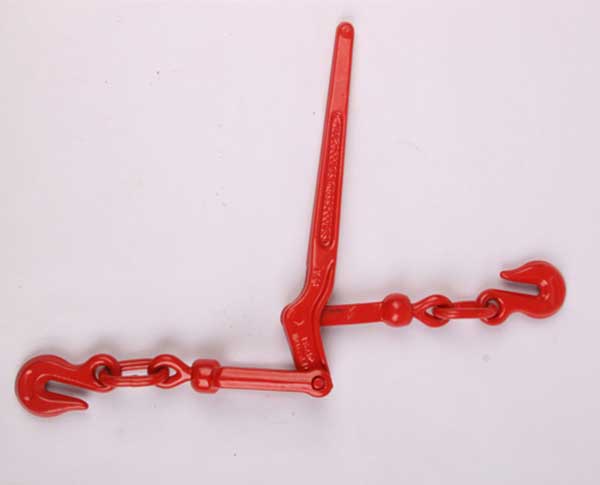

杠杆式拉紧器
FORGED LEVER LOAD BINDERTechnical specialities
·Made from quenched and tempered allow steel
·Extra heavy construction at leverage point to prevent spreading Heel of binder toggles away from load，permintting easy release.
·Ball and socket swivel joints at hook assemblies permit a straight line pull.
·Free 360 degree swivel hooks for easier handing
| FORGED LEVER LOAD BINDER | ||||||||||||
|
Min-Max Chain Size （in.） |
Working Load Limit （lbs） |
Proof Load （lbs） |
Minimum Ultimate Load （lbs） |
Weight （lbs） |
Handle Length （in.） |

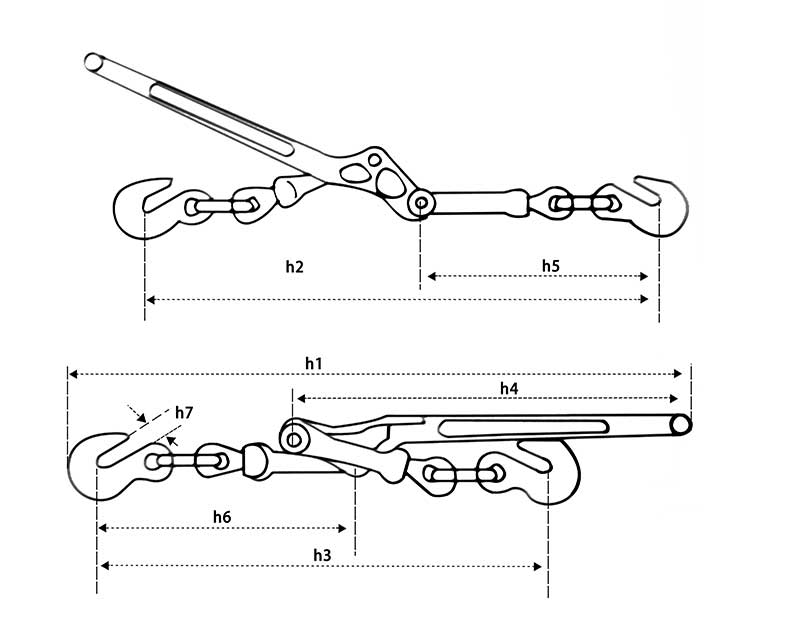

Dimensions （in.） |
||||||
| h1 | h2 | h3 | h4 | h5 | h6 | h7 | ||||||
| 1/4-5/16 | 2600 | 5200 | 7800 | 3.52 | 11.42 | 18.50 | 17.30 | 14.17 | 11.42 | 8.27 | 8.07 | 0.35 |
| 5/16-3/8 | 5400 | 10800 | 19000 | 8.37 | 15.43 | 25.50 | 23.20 | 19.49 | 15.55 | 11.22 | 11.22 | 0.51 |
| 3/8-1/2 | 9200 | 18400 | 28000 | 12.11 | 17.24 | 28.50 | 26.38 | 22.05 | 17.64 | 12.99 | 12.20 | 0.59 |
| 33000 | 12.20 | 17.24 | 28.50 | 26.38 | 22.05 | 17.64 | 12.99 | 12.20 | 0.59 | |||
| 1/2-5/8 | 11000 | 22000 | 44000 | 19.70 | 21.00 | 33.86 | 30.12 | 25.78 | 20.87 | 14.37 | 14.37 | 0.74 |
