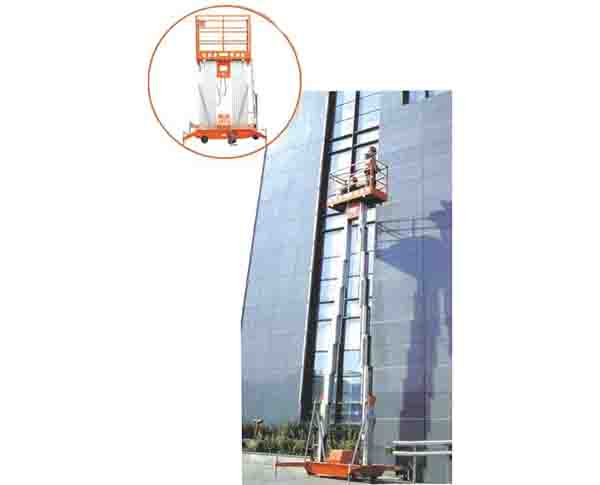

GTWY 双桅升降平台
| Mobile Aluminium Work Platform（Dual Mast） | ||||||
|
型号规格 Model Number |
AWP6-2000 | AWP8-2000 | AWP10-2000 | AWP12-2000 | ||
|
平台最大高度 Max.Platform Height |
mm | 6000 | 8000 | 10000 | 12000 | |
|
工作高度 Working Height |
mm | 7700 | 9700 | 11700 | 13700 | |
|
底座离地距离 Ground Clearance |
mm | 80 | ||||
|
平台额定载荷 Lift Rated Capacity |
kg | 300 | 250 | 200 | ||
|
工作平台尺寸 Platform Size |
mm | 1500×600 | 1620×600 | 1740×600 | ||
|
撑腿展开尺寸 Outspread Size |
mm | 1950×1850 | 2130×1980 | 2550×2500 | ||
|
电源 Electrical Source |
交流AC | V | 220 | |||
| 直流DC | V | 24 | ||||
|
免维护电池 Aneroid Battery |
v/Ah | 2×12/60 | ||||
|
充电器 Charger |
v/A | 24/10 | ||||
|
举升电机 Lifting Motor |
交流AC | v/kw | 220/1.5 | |||
| 直流DC | v/kw | 24/2.0 | ||||
|
整机长度 Overall Length |
mm | 1550 | 1670 | 1790 | ||
|
整机宽度 Overall Width |
mm | 900 | ||||
|
整机高度 Overall Height |
mm | 1970 | 2070 | |||
|
整机重量 Overall Net Weight |
交流AC | kg | 480 | 580 | 680 | 780 |
| 直流DC | kg | 510 | 610 | 710 | 810 | |
