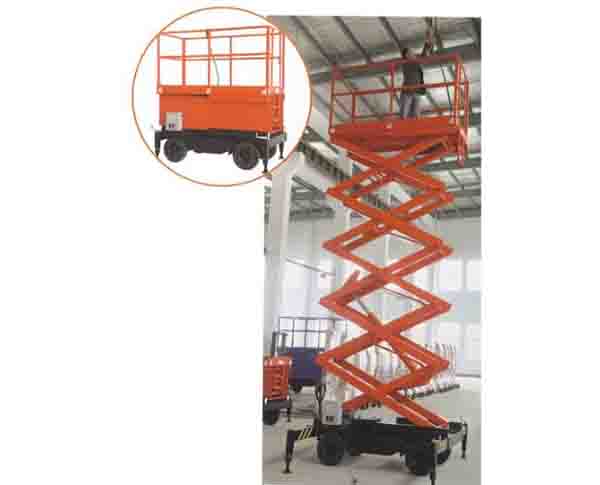

SJY 剪叉式升降平台（Ⅲ型）
| Scissor type elevating Platform（Ⅲ） | |||||
|
型号规格 Model Number |
SJY0.5-6 | SJY0.5-7.5 | SJY0.5-9 | SJY0.5-11 | |
|
平台最大高度 Max.Platform Height |
mm | 6000 | 7500 | 9000 | 11000 |
|
平台最低高度 Min.Platform Height |
mm | 1080 | 1200 | 1360 | 1480 |
|
工作平台尺寸 Platform Size |
mm | 2200×1000×1100 | |||
|
平台额定载荷 Lift Rated Capacity |
kg | 500 | |||
|
撑腿展开尺寸 Outspread Size |
mm | 2700×2200 | |||
|
上升时间 Elevating Time |
s | 59 | 77 | ||
|
电机功率 Electromotor Power |
kw | 2.2 | 3 | ||
|
电压 Voltage |
v | 220 | 380 | ||
|
整机长度 Overall Length |
mm | 2270 | |||
|
整机宽度 Overall Width |
mm | 1300 | |||
|
整机高度 Overall Height |
mm | 1180 | 1300 | 1460 | 1580 |
|
整机重量 Overall Net Weight |
kg | 950 | 1350 | 1600 | 1800 |
