G100 Welded Master Link Assembly with Flat（TH-1015）
Green painted.other colour is available as per request.
Working load limit permanently shown on the body.
Max proof load is 2.5 times of the working load limited.
Min.Breaking strength is 4 times of the W.L.L.

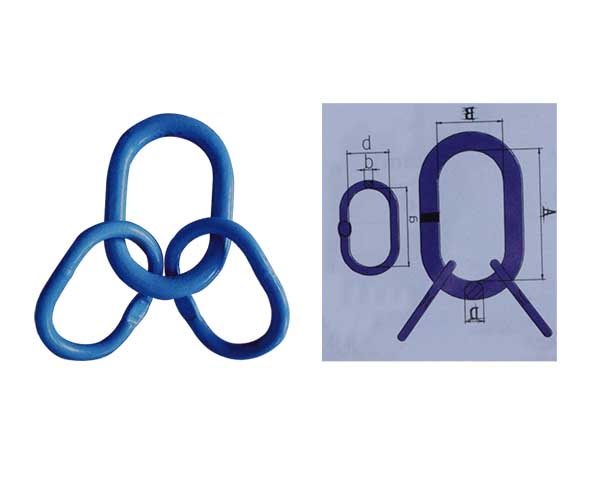

| Size | W.L.L | B.L | Dimension（mm） | Weight | |||||
| (t) | (t) | A | B | D | a | b | d | kg/pc | |
| 6-10 | 3.5 | 14 | 150 | 90 | 19 | 120 | 70 | 14 | 1.8 |
| 8-10 | 5 | 20 | 160 | 95 | 22 | 140 | 80 | 17 | 3 |
| 10-10 | 11.5 | 46 | 200 | 120 | 30 | 160 | 95 | 22 | 6.5 |
| 13-10 | 17 | 68 | 250 | 150 | 40 | 200 | 120 | 30 | 15 |
| 16-10 | 28 | 112 | 300 | 200 | 50 | 200 | 120 | 32 | 23 |
