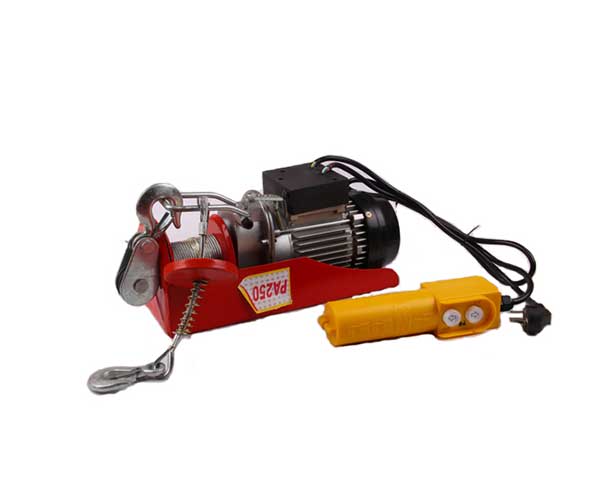

微型电动葫芦系列
The Product’s Feature

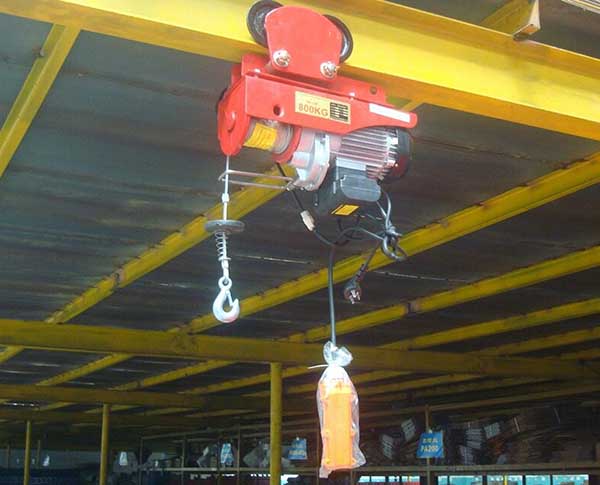

It can be in conjunction with JTEC-M series Mini electric hoist, chain block and lever block.
Short turning radius, turning smoothly.
I-beam’s width is 80-110.
The normalizing gear of high quality to make sure its steady working.
The ball bearing never need the lubricating oil, which is efficient.
1.With emergency stop switch.
2.Reinforced breaking switch .
3.Protection class up to IP54
4.With thermal prevention device.
5.With up and down position limit safety device.
| Technical Parameters | |||
| Model | KD0.5 | KD1 | |
| Capacity (T) | 0.5 | 1 | |
| Running Test Load (T) | 0.6 | 1.2 | |
| Standard Lift (m) | 3 | 3 | |
| Operating Speed (m/min) | 16.4 | 16.4 | |
| Motor Type | D25034 | D26325 | |
| Input Power (W) | 60 | 300 | |
| Rotation Speed (rpm) | 1400 | 1400 | |
| The Min. Turn Radius (cm) | 100 | 100 | |
| Dimensions (mm) | A | 320 | 340 |
| B | 203 | 203 | |
| C | 314 | 314 | |
| D | 253 | 253 | |
| F | 2 | 2 | |
| N.W (Kg) | 8 | 19 | |
