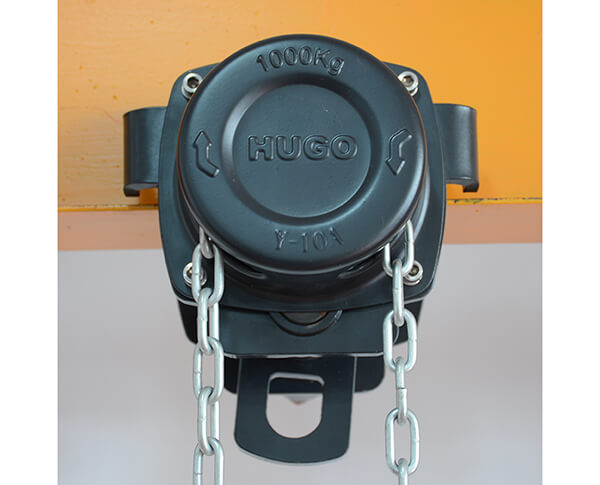

低净空手拉小车

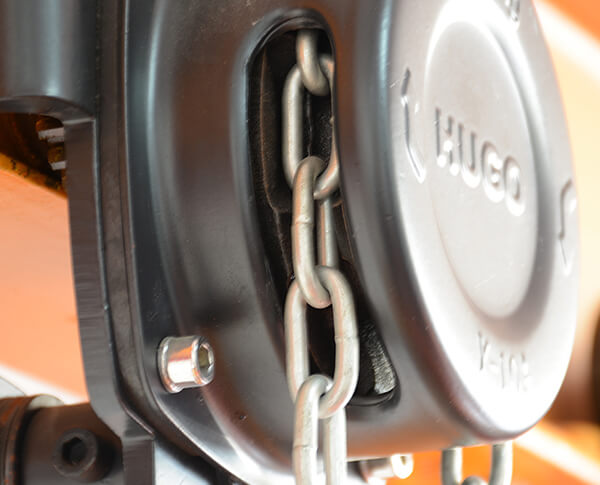

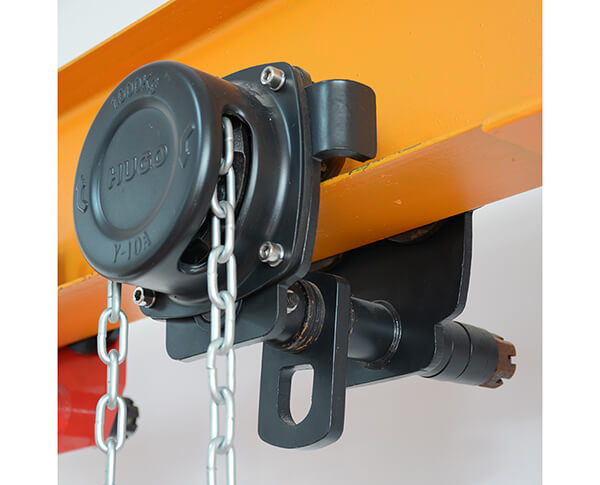

It is driven by pulling the hand chain and travels along the lower edge of I-beam.
It applicables to factories,mine , wharf, dock,warehouse,construction site and machine room,etc.
It is used to install the machine equipment and lift goods.

It is suitable for the work environment without power.
Safety and simply maintenance.
Compact structure and small package size.

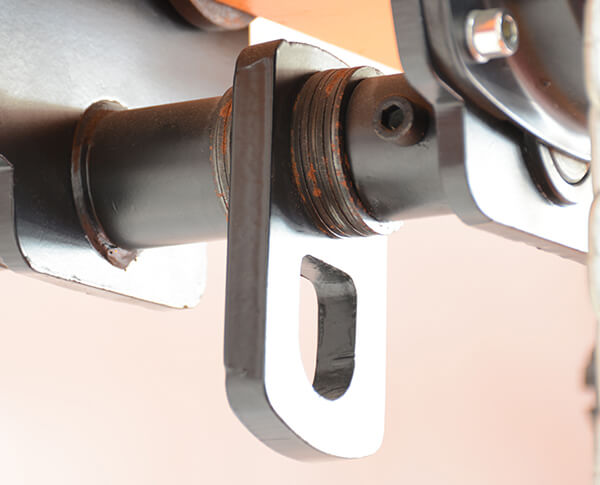

The distance between its wheels is easy to adjust and can be used in many kinds of I-beam.
It's so high transmission efficiency that do need less output.
It can be drived in a small turning diameter.

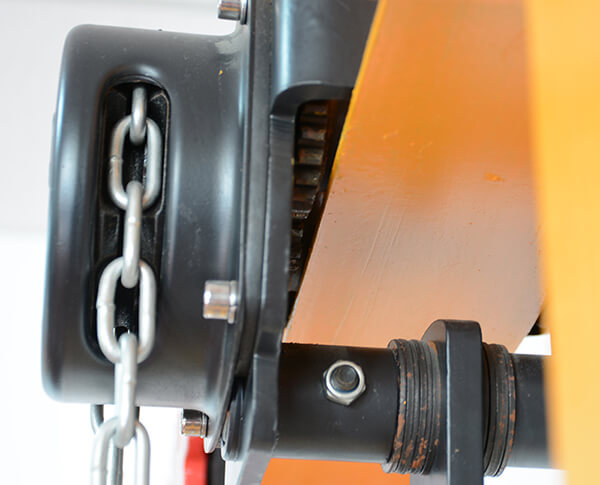

The hinge linkes the left and right side plate to guarantee equal force.

Don't load exceeding the rated capacity of the hand trolley.
To avoid accidents working or passing under a load is strictly forbidden.
Regularly fill the grease on the bearings and rail surfaces. Meantime check whether there is any loose on the firmware.
If there are any anomalous situations, stop using the product immediately and Check the cause to remove it .
Regularly maintenance is needed.


JTPT-E Plain Trolley
Model Rated capacity (Kg) Test load (Kg) Adjustable beam width
(mm)
N.W.
(Kg)
G.W.
(Kg)

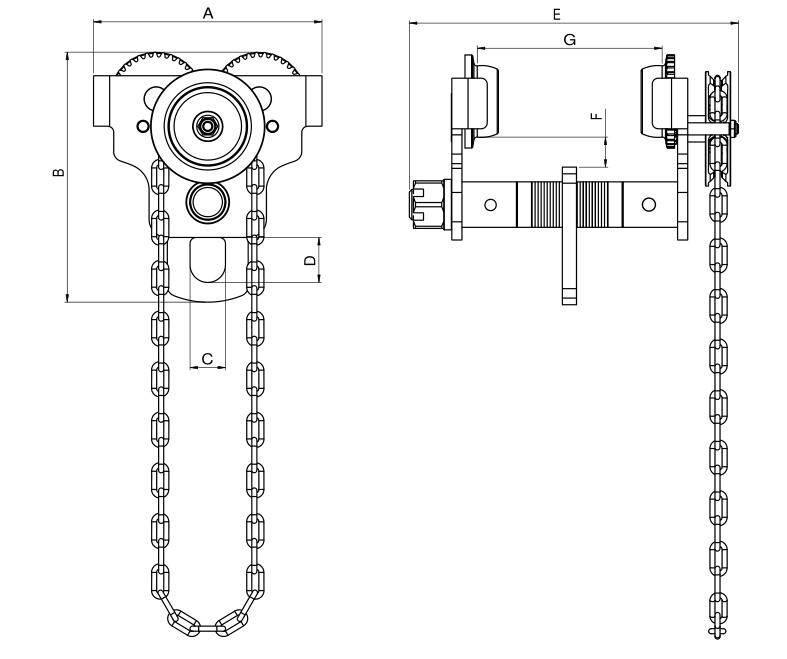

Dimensions(mm)
A B C D E F G
0.5T 500 750 50-203 - - - - - - - - -
1T 1000 1500 64-203 8.2 8.6 195 210 30 35 260 34 190
2T 2000 3000 88-203 12.6 13.1 229 245 35 45 285 28 203
3T 3000 4500 100-203 21.9 22.5 276 285 40 50 295 32 203
5T 5000 7500 114-203 34.2 37.3 317 330 45 60.5 302 32 203
10T 10000 15000 125-203 60.7 70.7 382 402 60 85 333 32 203
