DIN5685A 短链
| DIN5685A Short Link Chains | |||||

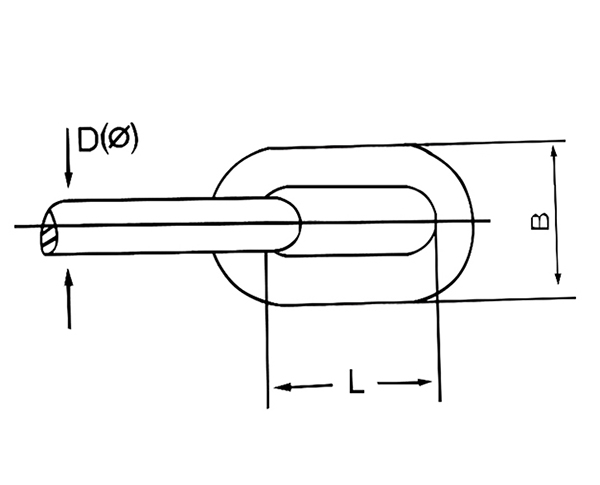

| Diameter | Inside Length | Outside Width | Proof Load | Breaking Load | Approx. Weight |
| mm | mm | mm | n | n | kg/m |
| 2 | 12 | 8 | 500 | 1250 | 0.07 |
| 2.5 | 14 | 10 | 750 | 2000 | 0.11 |
| 3 | 16 | 12 | 1120 | 2800 | 0.165 |
| 3.5 | 18 | 14 | 1500 | 3850 | 0.225 |
| 4 | 19 | 16 | 2000 | 5000 | 0.3 |
| 4.5 | 20 | 18 | 2500 | 6300 | 0.395 |
| 5 | 21 | 20 | 3150 | 7750 | 0.5 |
| 5.5 | 23 | 22 | 3800 | 9500 | 0.605 |
| 6 | 24 | 24 | 4500 | 11500 | 0.73 |
| 6.5 | 26 | 26 | 5400 | 13500 | 0.86 |
| 7 | 28 | 28 | 6000 | 15000 | 1 |
| 8 | 32 | 32 | 8000 | 20000 | 1.3 |
| 9 | 36 | 36 | 10000 | 25000 | 1.65 |
| 10 | 40 | 40 | 12500 | 31000 | 2.05 |
| 11 | 44 | 44 | 15000 | 38000 | 2.5 |
| 12 | 48 | 48 | 18000 | 45000 | 2.9 |
| 13 | 52 | 52 | 21200 | 53000 | 3.45 |
