矿用高强度链条
| LASHING CHAIN/BINDING CHAIN | |||||||

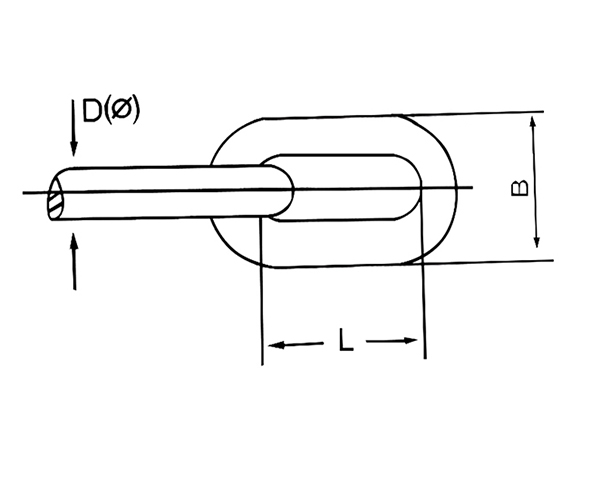

| 链径 D | 内长 L | 外宽 B | 拉力负荷 | 破断负荷 | 重量 | ||
| DIAMETER | INSIDE LENGTH | OUTSIDE WIDTH | PROOF LOAD | BREAKING LOAD | WEIGHT | ||
| MM | MM | MM |
Gr.(B) KN |
Gr.(C) KN |
Gr.(B) (MIN)KN |
Gr.(C) (MIN)KN |
KG/M |
| 14 | 50±0.5 | 48 | 150 | 200 | 190 | 250 | 4.0 |
| 18 | 60±0.6 | 60 | 260 | 330 | 320 | 410 | 6.6 |
| 22 | 86±0.9 | 74 | 380 | 490 | 480 | 610 | 9.5 |
| 24 | 86±0.9 | 79 | 460 | 580 | 570 | 720 | 11.6 |
| 24 | 87.5±0.9 | 79 | 460 | 580 | 570 | 720 | 11.5 |
| 26 | 92±1.0 | 86 | 540 | 680 | 670 | 850 | 13.7 |
