普通低碳钢短链

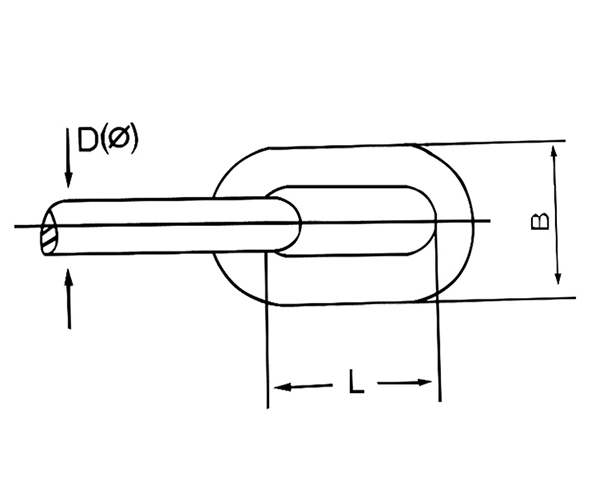

| Ordinary Mild Steel Short Link Chains | |||||||
| Diameter | Inside Length | Outside Width | Test Load | Breaking Load | Approx.weight | ||
| Bright | Hdg | ||||||
| IN. | mm | mm | mm | kg | kg | kg/m | kg/m |
| 1/8 | 3.2 | 16 | 12 | 200 | 400 | 0.187 | 0.194 |
| 5/32 | 4 | 18.5 | 14.5 | 300 | 600 | 0.305 | 0.312 |
| 3/16 | 4.7 | 19 | 17 | 400 | 800 | 0.43 | 0.443 |
| 7/32 | 5.5 | 20 | 19 | 550 | 1100 | 0.604 | 0.623 |
| 1/4 | 6.35 | 2 | 21 | 750 | 1500 | 0.82 | 0.846 |
| 5/16 | 7.94 | 26.5 | 27.2 | 1200 | 2400 | 1.312 | 1.352 |
| 3/8 | 9.5 | 28 | 32 | 1700 | 3400 | 2.001 | 20.64 |
| 7/16 | 11011 | 34 | 36 | 2300 | 4600 | 2.69 | 2.772 |
| 1/2 | 12.7 | 39 | 43 | 3000 | 6000 | 3.445 | 3.543 |
| 5/8 | 15.8 | 45 | 53 | 4700 | 9400 | 5.479 | 5.643 |
| 3/4 | 19 | 55 | 63 | 6800 | 13600 | 7.956 | 8.202 |
| 7/8 | 22.2 | 64 | 74 | 9250 | 18500 | 10.761 | 11.089 |
| 1 | 25.4 | 73 | 84 | 12150 | 24300 | 14.272 | 14.698 |
