DIN5685C 长链
| DIN5685C Long Link Chains | |||||

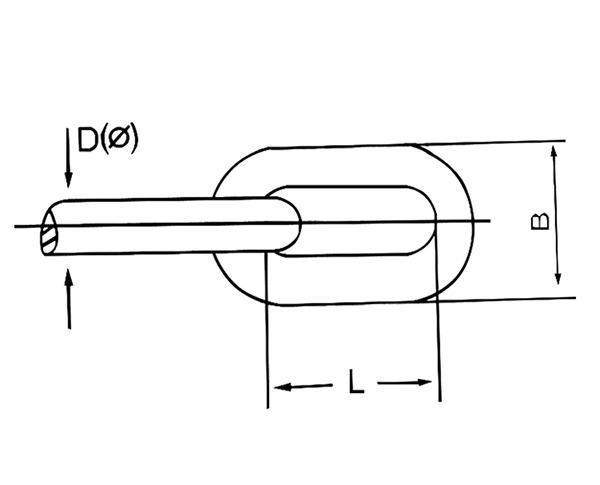

| Diameter | Inside Length | Outside Width | Proof Load | Breaking Load | Approx. Weight |
| mm | mm | mm | n | n | kg/m |
| 2 | 22 | 8 | 500 | 1250 | 0.06 |
| 2.5 | 24 | 10 | 750 | 2000 | 0.1 |
| 3 | 26 | 12 | 1120 | 2800 | 0.15 |
| 3.5 | 28 | 14 | 1500 | 3850 | 0.2 |
| 4 | 32 | 16 | 2000 | 5000 | 0.27 |
| 4.5 | 34 | 18 | 2500 | 6300 | 0.35 |
| 5 | 35 | 20 | 3150 | 7750 | 0.43 |
| 5.5 | 38.5 | 22 | 3800 | 9500 | 0.52 |
| 6 | 42 | 24 | 4500 | 11500 | 0.63 |
| 6.5 | 45.5 | 26 | 5400 | 13500 | 0.74 |
| 7 | 49 | 28 | 6000 | 15000 | 0.86 |
| 8 | 52 | 32 | 8000 | 20000 | 1.1 |
| 9 | 59 | 36 | 10000 | 25000 | 1.41 |
| 10 | 65 | 40 | 12500 | 31000 | 1.75 |
| 11 | 72 | 44 | 15000 | 38000 | 2.11 |
| 12 | 78 | 48 | 18000 | 45000 | 2.55 |
| 13 | 82 | 52 | 21200 | 53000 | 2.95 |
