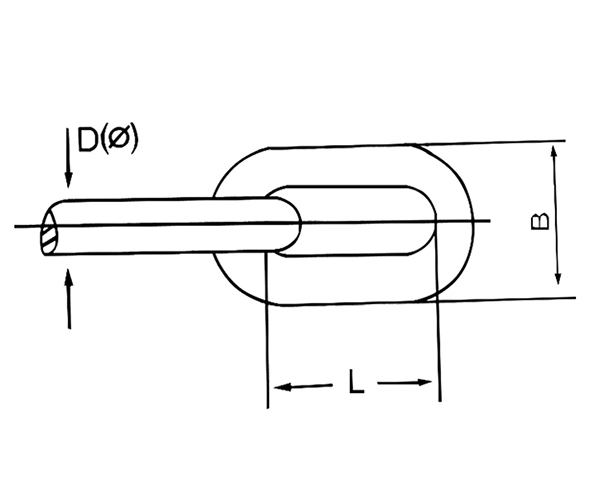

DIN 763 Link Chains
|
|
Diameter
|
Inside
Length
|
Outside
Width
|
Working
Load
|
Testing
Load
|
Breaking
Load
|
Approx.weight
|
|
mm
|
mm
|
mm
|
kg
|
n
|
n
|
kg/m
|
|
2
|
22
|
8
|
25
|
500
|
1250
|
0.06
|
|
2.5
|
24
|
10
|
40
|
800
|
2000
|
0.1
|
|
3
|
26
|
12
|
55
|
1050
|
3200
|
0.15
|
|
3.5
|
28
|
14
|
80
|
1540
|
3850
|
0.2
|
|
4
|
32
|
16
|
100
|
2000
|
6000
|
0.27
|
|
4.5
|
34
|
18
|
128
|
2500
|
6300
|
0.35
|
|
5
|
35
|
20
|
160
|
3150
|
10000
|
0.43
|
|
6
|
42
|
24
|
224
|
4500
|
14000
|
0.63
|
|
7
|
49
|
28
|
300
|
6000
|
18000
|
0.86
|
|
8
|
52
|
32
|
400
|
8000
|
25000
|
101
|
|
9
|
59
|
36
|
530
|
10500
|
32000
|
1.41
|
|
10
|
65
|
40
|
630
|
12500
|
40000
|
1.75
|
|
11
|
72
|
44
|
790
|
15800
|
47500
|
2.11
|
|
12
|
78
|
48
|
940
|
18800
|
56500
|
2.55
|
|
13
|
82
|
52
|
1000
|
21200
|
63000
|
2.95
|
|
16
|
100
|
64
|
1600
|
33000
|
100000
|
4.45
|
|
18
|
113
|
70
|
2120
|
42300
|
127000
|
5.65
|
|
19
|
119
|
72
|
2370
|
47300
|
142000
|
6.25
|
|
20
|
120
|
75
|
2500
|
50000
|
160000
|
7
|
|
22
|
127
|
82
|
3170
|
63300
|
190000
|
8.55
|
|
25
|
140
|
88
|
4090
|
81700
|
245000
|
10.9
|
|
28
|
152
|
96
|
6000
|
120000
|
300000
|
13.9
|
