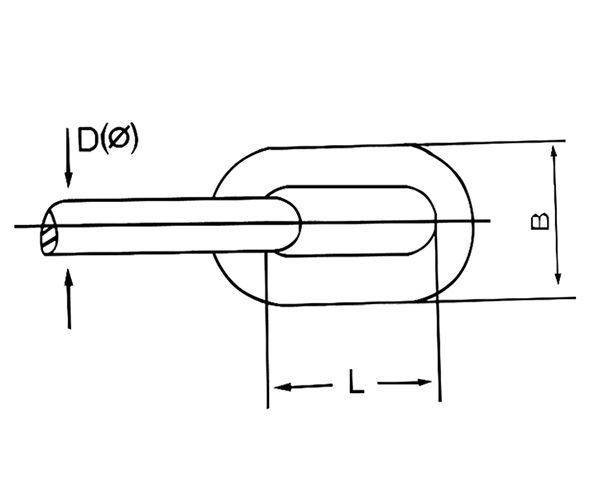

DIN 766 Link Chains
|
|
Diameter
|
Inside
Length
|
Inside
Width
|
Outside
Width
|
Length
11links
|
Approx.weight
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
|
2
|
12
|
3.5
|
7.5
|
132
|
0.07
|
|
3
|
16
|
4.2
|
11
|
176
|
0.19
|
|
4
|
16
|
5
|
13.7
|
176
|
0.32
|
|
5
|
18.5
|
6
|
17
|
203.5
|
0.5
|
|
6
|
18.5
|
7.2
|
20.2
|
203.5
|
0.8
|
|
7
|
22
|
8.4
|
23.8
|
242
|
1.1
|
|
8
|
24
|
9.6
|
27.2
|
264
|
1.4
|
|
9
|
27
|
10.8
|
30.6
|
297
|
1.8
|
|
10
|
28
|
12
|
34
|
308
|
2.2
|
|
11
|
31
|
13.2
|
37.4
|
341
|
2.7
|
|
12
|
36
|
14.4
|
40.8
|
396
|
3.1
|
|
13
|
36
|
15.6
|
44.2
|
396
|
3.8
|
|
14
|
41
|
16.8
|
47.6
|
451
|
4.4
|
|
16
|
45
|
19.2
|
54.4
|
495
|
5.7
|
|
18
|
50
|
21.6
|
61.2
|
550
|
7.3
|
|
19
|
53
|
22.8
|
64.6
|
583
|
8
|
|
20
|
56
|
24
|
68
|
616
|
9
|
|
22
|
62
|
26.4
|
75
|
682
|
11
|
|
23
|
64
|
27.6
|
78.2
|
704
|
12
|
|
26
|
73
|
31.2
|
88.4
|
803
|
15
|
|
28
|
78
|
33.8
|
95.2
|
858
|
18
|
|
30
|
84
|
41
|
102
|
924
|
19.5
|
|
32
|
90
|
43
|
108.8
|
990
|
23
|
