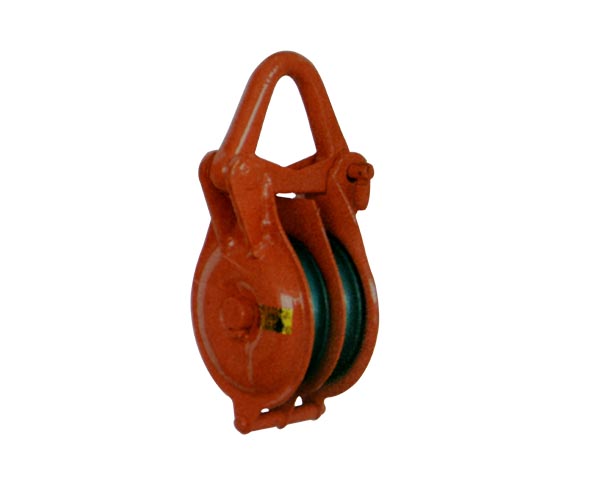

YB双轮圆形矿用滑车

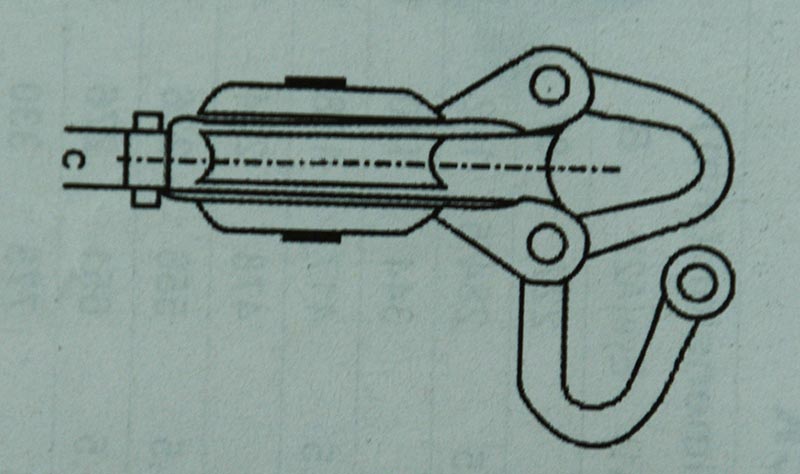

| Type | Sheave Dia | S.W.L. | Dimension (mm) | N.W. | For Wire Dia | |||
| (mm) | (t) | A | B | C | D | (kg) | (mm) | |
| YB75X2 | 75 | 0.5 | 178 | 85 | 50 | 12 | 1.8 | 8 |
| YB100X2 | 100 | 1 | 235 | 121 | 61 | 16 | 2.8 | 8 |
| YB125X2 | 125 | 1.5 | 305 | 145 | 73 | 18 | 5.5 | 9 |
| YB150X2 | 150 | 2 | 350 | 180 | 83 | 22 | 8.5 | 12 |
| YB200X2 | 200 | 4 | 425 | 225 | 93 | 28 | 16.5 | 16 |
| YB250X2 | 250 | 5 | 495 | 275 | 115 | 28 | 25.5 | 22 |
